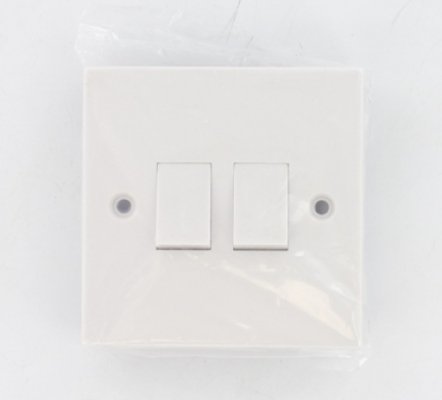

Twin Status 2-Gang 2-Way Light Switch

Description

How to Use the STATUS TWIN / 2 GANG 2 WAY LIGHT SWITCH

Introduction

The STATUS TWIN / 2 GANG 2 WAY LIGHT SWITCH allows you to control two separate lights from two different locations. This guide will help beginners understand how to install and operate this light switch.

Tools and Materials Needed

• Screwdriver
• Voltage tester
• Wire stripper
• Electrical tape
• The STATUS TWIN / 2 GANG 2 WAY LIGHT SWITCH

Installation Instructions

1. Safety First

• Ensure the power is turned off at the circuit breaker to prevent electric shock.
• Use a voltage tester to confirm there is no power to the switch.

2. Remove Old Switch

• Use a screwdriver to remove the screws from the existing switch plate.
• Carefully pull out the old switch from the wall box.
• Disconnect the wires from the old switch.

3. Wiring the New Switch

• Connect the live wire to the L terminal on the new switch.
• Connect the neutral wire to the N terminal.
• If there are additional wires, connect them as per the instructions provided with the switch.
• Ensure all connections are secure and cover any exposed wire with electrical tape.

4. Installing the New Switch

• Carefully push the new switch into the wall box.
• Screw the switch plate into place using the provided screws.

5. Testing the Switch

• Turn the power back on at the circuit breaker.
• Test the switch by turning the lights on and off from both locations.
• If the switch does not work correctly, turn off the power and check the wiring connections.

Operation Instructions

• Press the top part of the switch to turn the light on.
• Press the bottom part of the switch to turn the light off.
• Repeat for the second switch to control the second light.

Troubleshooting Tips

• If the switch does not operate, ensure that the power is turned on and all wiring connections are secure.
• Consult a professional electrician if you are unsure about any wiring connections.

Conclusion

Following these instructions will help you successfully install and use your STATUS TWIN / 2 GANG 2 WAY LIGHT SWITCH. Remember to always prioritize safety and consult a professional if needed.
