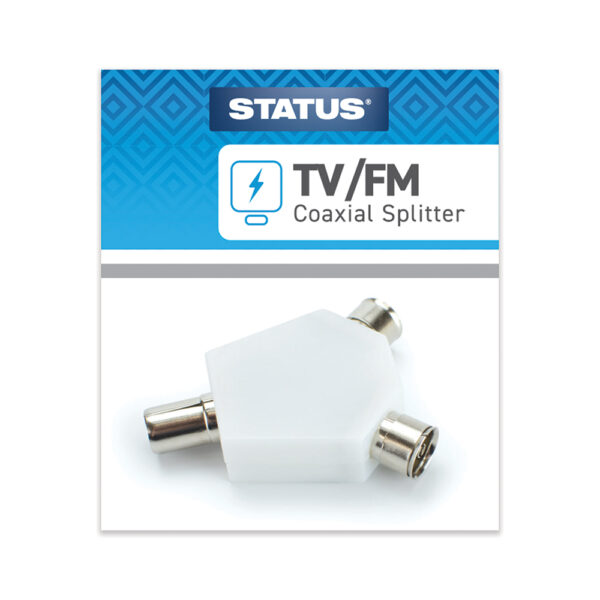

STATUS TV/FM Coaxial Aerial Splitter – Male to Dual Female

Description

How to Use STATUS TV / FM Coaxial Aerial Y Splitter

Introduction

This guide will help you set up and use the STATUS TV / FM Coaxial Aerial Y Splitter, which allows you to connect one coaxial input to two output devices such as TVs or FM radios.

Before You Begin

• Ensure you have the STATUS TV / FM Coaxial Aerial Y Splitter.
• Make sure you have a coaxial cable for input and two coaxial cables for output.
• Power off all devices before making any connections to avoid damage.

Steps to Connect the Splitter

Step 1: Identify the Connectors

• Locate the male connector on the splitter. This is the single input end.
• Identify the two female connectors. These are the output ends for connecting to devices.

Step 2: Connect the Input

• Take the coaxial cable from your main TV or FM aerial source.
• Connect this cable to the male input connector on the splitter.

Step 3: Connect the Outputs

• Attach one coaxial cable to one of the female connectors on the splitter.
• Connect the other end of this cable to the coaxial input on your first device (TV or radio).
• Use the second coaxial cable to connect the second female connector on the splitter to the second device.

Step 4: Secure Connections

• Ensure all connections are tight and secure to prevent signal loss.

Step 5: Power On and Test

• Turn on the devices connected to the splitter.
• Check if both devices receive a proper signal.
• Adjust connections if necessary for optimal performance.

Troubleshooting Tips

• If the signal is weak or missing, check all cable connections are secure.
• Try switching cables to ensure none of them are faulty.
• Consult your device manuals for additional configuration settings.
