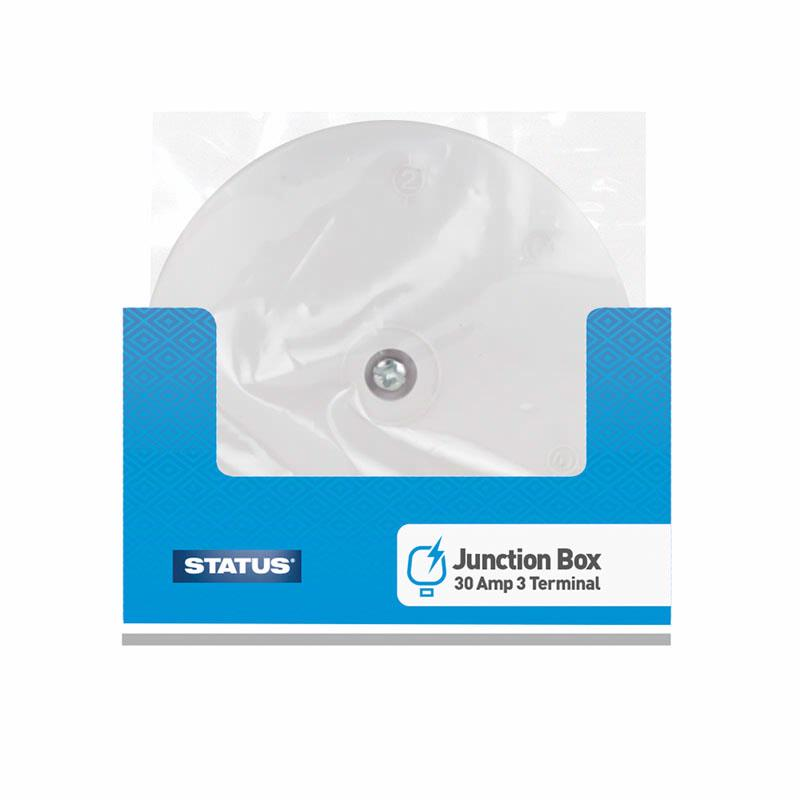

STATUS 30A 3-WAY JUNCTION BOX TERMINAL

Description

How to Use the STATUS 30A Junction Box – 3 Terminal / Way

Introduction

The STATUS 30A Junction Box is designed for safely connecting multiple electrical wires. Ensure that you adhere to all safety guidelines and electrical standards when using this product.

Tools and Materials Needed

• STATUS 30A Junction Box
• Wire Strippers
• Screwdriver
• Electrical Tape
• Appropriate Cables/Wires
• Voltage Tester (optional)

Safety Precautions

• Ensure the power is turned off at the main circuit breaker before starting any wiring work.
• Use a voltage tester to confirm that no power is flowing through the wires.
• Wear appropriate safety gear, such as gloves and safety goggles.

Installation Steps

1. Prepare the Wires: Use the wire strippers to remove approximately 10mm of insulation from the ends of each wire that will be connected in the junction box.
2. Open the Junction Box: Unscrew and remove the cover of the junction box to access the terminals inside.
3. Connect the Wires:
   • Insert the stripped end of each wire into the appropriate terminal within the junction box.
   • Tighten the screws on the terminals to secure the wires in place.
   • Ensure there are no loose wires and that each connection is secure.
4. Check the Connections: Double-check that all wires are properly connected and secured.
5. Close the Junction Box: Once all connections are confirmed, replace the cover of the junction box and tighten the screws to secure it.
6. Restore Power: Turn the power back on at the main circuit breaker and test the connections with a voltage tester to ensure everything is functioning correctly.

Troubleshooting

• If connections are not working, double-check that the wires are properly stripped and securely fastened in the terminals.
• Ensure that there is no damage to the wires or the junction box.
• If problems persist, consult a professional electrician.

Conclusion

The STATUS 30A Junction Box is a reliable solution for connecting electrical wires safely. Always prioritize safety and consult a professional if you are unsure about any step of the installation process.
