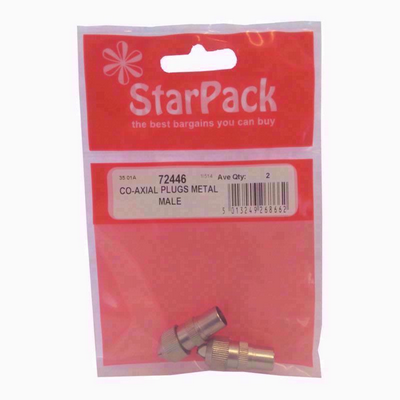

STAR PACK Set of 2 Male Coaxial Plug Connectors

Description

How to Use the STAR PACK 2 Coaxial Plug Male Connector

Step 1: Understand the Components

• Familiarize yourself with the parts of the coaxial plug, including the connector and the cable.

Step 2: Gather Necessary Tools

• Ensure you have a coaxial cable, wire cutters, and a stripping tool.
• Optional: Use a screwdriver if needed for securing connections.

Step 3: Prepare the Coaxial Cable

• Use the wire stripping tool to carefully remove about 1 inch of the outer insulation from the end of the coaxial cable.
• Be careful not to damage the shielding or the inner conductor.

Step 4: Attach the Connector

• Slide the coaxial plug over the prepared end of the cable.
• Ensure the central conductor is correctly aligned with the plug’s central pin.
• Tighten the plug to secure the cable in place.

Step 5: Test the Connection

• Connect the coaxial plug to the appropriate port on your device.
• Verify the signal is being transmitted properly by checking the device functions as expected.

Step 6: Troubleshooting

• If the connection is not stable, check the alignment of the central conductor and re-tighten the connector.
• Ensure there are no frayed wires causing interference.
