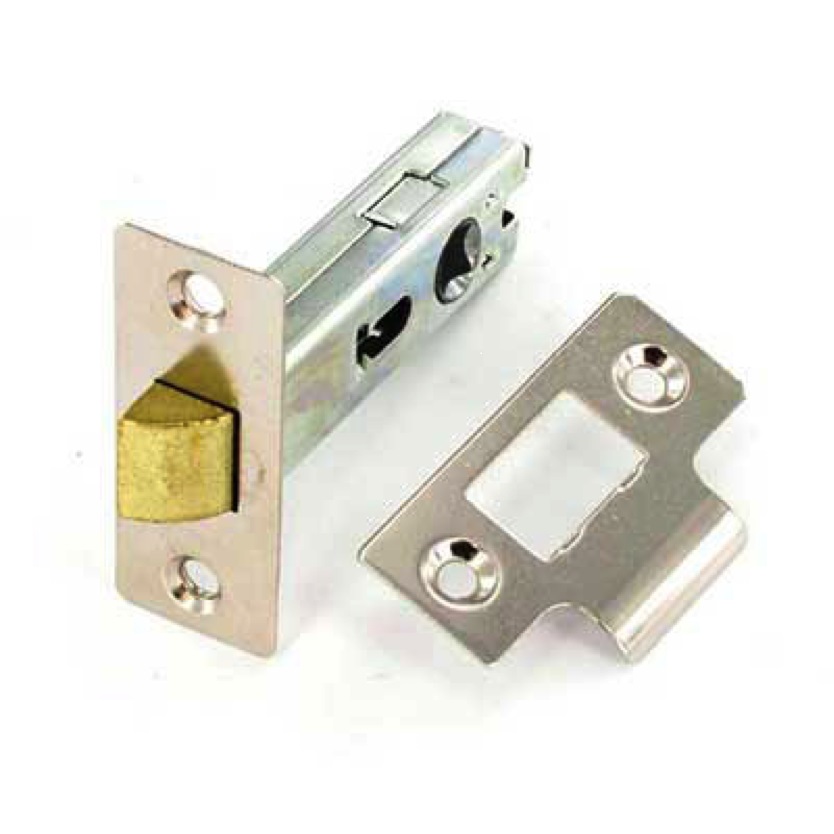

SECURIT S1922 Nickel-Plated 63mm Mortice Latch

Description

How to Use the Securit S1922 Nickle Plated Mortice Latch 63MM

Introduction

The Securit S1922 Nickel Plated Mortice Latch is designed for interior doors and provides a secure, easy-to-use latch mechanism. Follow the instructions below to properly install and use your mortice latch.

Tools Required

• Screwdriver
• Drill
• Chisel
• Measuring tape
• Pencil

Installation Steps

1. Measure and Mark: Use the measuring tape to determine the height at which the latch will be installed. Mark the spot with a pencil on the door edge.
2. Drill the Latch Hole: Using a drill, create a hole on the marked spot to fit the latch mechanism. Ensure the hole is deep enough for the latch to sit flush with the door edge.
3. Chisel the Recess: With the help of a chisel, create a recess around the drilled hole so the faceplate of the latch can sit flush with the door edge.
4. Install the Latch: Insert the latch mechanism into the hole and secure it by screwing the faceplate into the door.
5. Mark and Install the Strike Plate: Close the door and mark the position where the latch meets the door frame. Drill a corresponding hole and chisel a recess for the strike plate. Secure the strike plate with screws.
6. Test the Latch: Close and open the door several times to ensure the latch operates smoothly and the door closes securely.

Maintenance Tips

• Regularly check the screws on the latch and strike plate and tighten them if necessary.
• Lubricate the latch mechanism periodically to ensure smooth operation.
• Inspect the door alignment occasionally to prevent undue stress on the latch.

Safety Information

Ensure that the door latch is installed properly to maintain security and prevent door damage. Follow all instructions carefully and use appropriate safety gear when handling tools.

For further assistance, consult a professional locksmith or refer to the manufacturer’s guidelines.
