Description
How to Use Pifco Nickel Co-Axial TV Plugs
Introduction

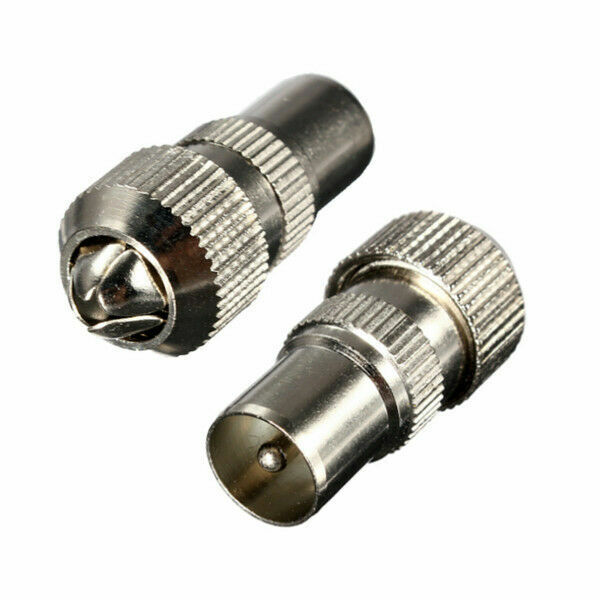

The Pifco Nickel Co-Axial TV Plugs are designed to connect your TV to an aerial or satellite receiver, ensuring a reliable signal transmission.
What You Will Need
- Pifco Nickel Co-Axial TV Plugs (Pack of 2)
- Co-axial cable
- Wire cutter or stripper
- Screwdriver
Steps to Install the Co-Axial TV Plugs
Step 1: Prepare the Cable
- Use a wire cutter or stripper to remove approximately 1/2 inch (1.27 cm) of the outer insulation from the end of the co-axial cable.
- Peel back the exposed braided shield to reveal the inner insulation.
- Strip about 1/4 inch (0.63 cm) of the inner insulation to expose the central conductor.
Step 2: Attach the Plug
- Unscrew the outer casing of the co-axial plug.
- Insert the prepared cable into the plug, ensuring that the central conductor is placed into the pinhole.
- Fold the braided shield over the crimp area of the plug.
- Securely screw the outer casing back onto the plug to hold the cable in place.
Step 3: Connect to the TV
- Locate the co-axial input on your TV or receiver.
- Insert the prepared co-axial plug into the input, ensuring a tight fit.
Troubleshooting Tips
- If the signal is weak or missing, ensure that all connections are tight and secure.
- Check that the co-axial cable is not damaged or broken.
- Confirm that the plug is properly attached to both the cable and the TV.
Conclusion
By following these steps, you should be able to successfully connect your TV to the aerial or satellite receiver using the Pifco Nickel Co-Axial TV Plugs. Enjoy your enhanced viewing experience!
