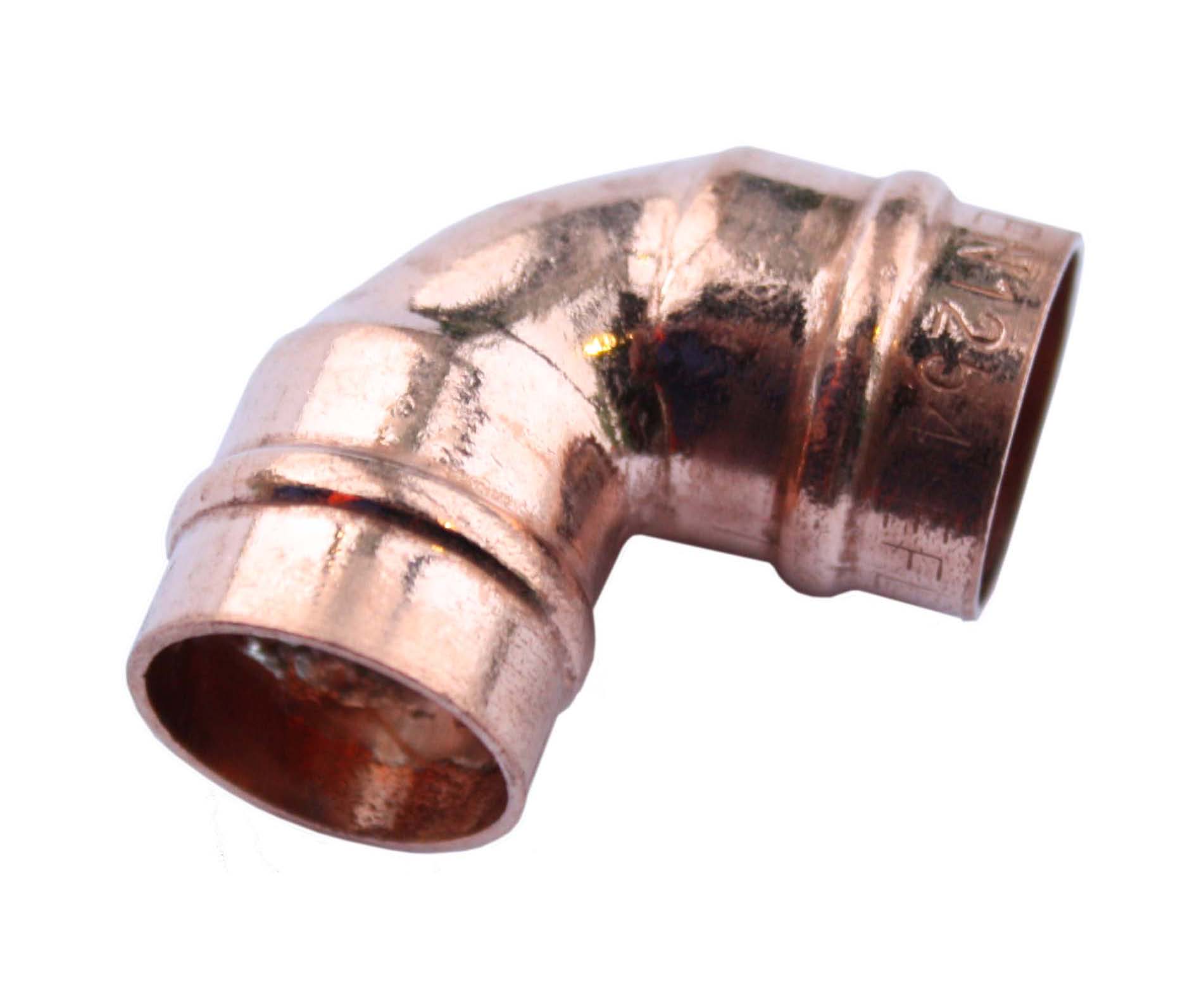

ORACSTAR PF54 15MM SOLDER RING ELBOW, PACK OF 2

Description

How to Use ORACSTAR PF54 Solder Ring Elbow 15mm 2/PK

Introduction

The ORACSTAR PF54 Solder Ring Elbow 15mm is designed for connecting two copper pipes at a 90-degree angle. It contains solder within the fitting, making the soldering process more streamlined.

Materials Required

• ORACSTAR PF54 Solder Ring Elbow 15mm
• Copper pipes (15mm diameter)
• Blowtorch
• Flux
• Pipe cutter
• Pipe cleaner or emery cloth
• Heat-resistant gloves
• Safety goggles

Preparation

1. Ensure your work area is well-ventilated and free of flammable materials.
2. Wear safety goggles and heat-resistant gloves to protect yourself.
3. Cut the copper pipes to the desired length using a pipe cutter.
4. Use a pipe cleaner or emery cloth to clean the ends of the pipes, removing any dirt, grease, or oxidation.

Assembly

1. Apply a thin layer of flux to the cleaned ends of the copper pipes.
2. Insert the pipe ends into the ORACSTAR PF54 Solder Ring Elbow fitting.
3. Ensure that the pipes are fully inserted and seated within the fitting.

Soldering

1. Heat the fitting with a blowtorch. Move the torch around the fitting to ensure even heating.
2. As the fitting heats up, the solder ring inside will melt and flow into the joint, creating a secure seal.
3. Once the solder has flowed evenly, remove the heat and allow the joint to cool naturally.

Final Steps

1. Inspect the joint to ensure the solder has filled the entire circumference of the fitting.
2. Wipe away any excess flux with a damp cloth.
3. Test the connection by running water through the pipes to check for leaks.

Safety Tips

• Always work in a well-ventilated area to avoid inhaling harmful fumes.
• Use appropriate safety gear, including goggles and gloves, to protect against heat and solder splatter.
• Do not touch the joint until it has fully cooled to prevent burns.
