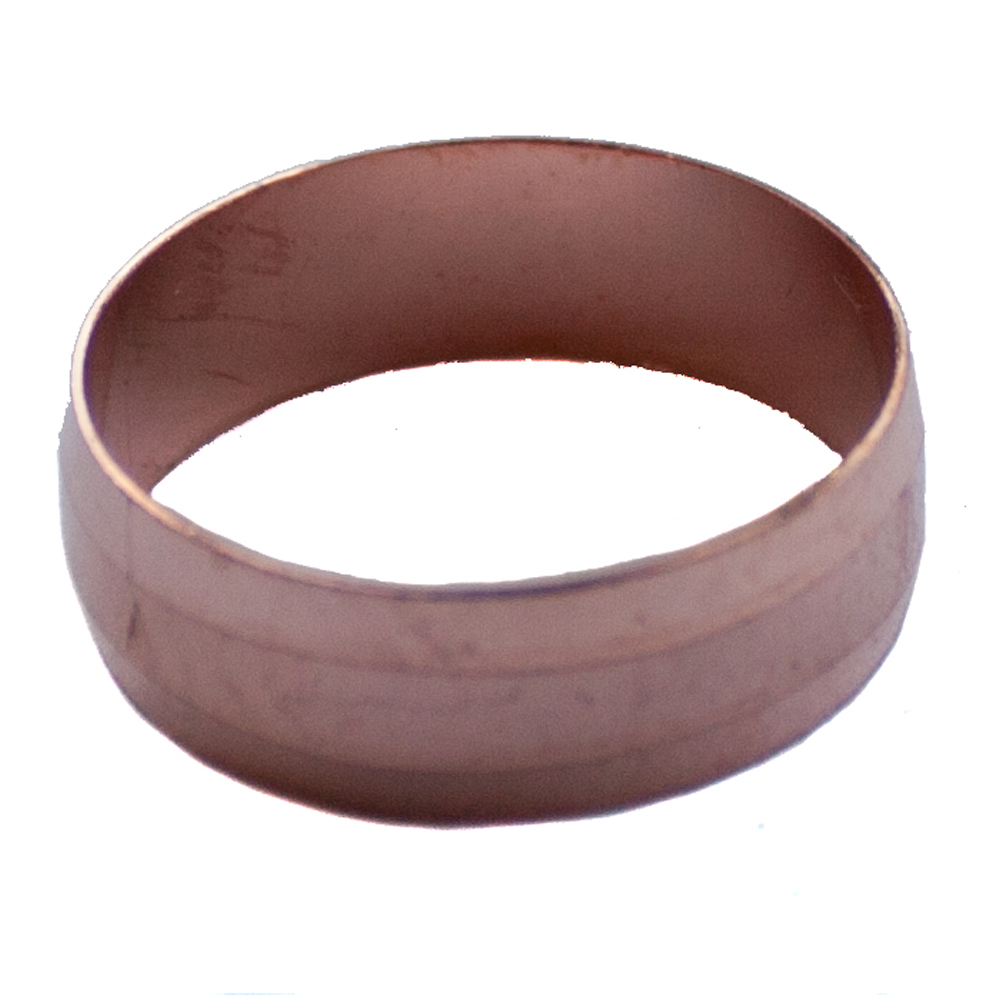

ORACSTAR PF21 15MM COMPRESSION OLIVES, PACK OF 5

Description

How to Use the ORACSTAR PF21 Compression Olive 15mm 5/PK

Introduction

The ORACSTAR PF21 Compression Olive 15mm is a plumbing accessory used to ensure a secure and leak-free connection in piping systems. This guide will walk you through the steps on how to properly use these compression olives.

Tools and Materials Needed

• ORACSTAR PF21 Compression Olive 15mm (from the 5 pack)
• Compression fitting
• Copper or plastic pipe (15mm)
• Adjustable wrench or spanner
• Pipe cutter (if needed)
• PTFE tape (optional)

Steps to Use the Compression Olive

1. Prepare the Pipe

• Ensure the pipe end is clean and free from any burrs or debris. Use a pipe cutter if the pipe needs trimming.
• If the pipe is plastic, consider adding a pipe insert for additional support.

2. Assemble the Compression Fitting

• Slide the compression nut onto the pipe, followed by the compression olive.
• Insert the pipe into the compression fitting body, ensuring it reaches the internal stop.
• Push the olive snugly against the fitting body.

3. Tighten the Fitting

• Hand-tighten the compression nut onto the fitting body.
• Use an adjustable wrench or spanner to further tighten the nut. Turn it about a 1/4 to 1/2 turn beyond hand-tight to ensure a secure connection.
• Be cautious not to over-tighten as it may damage the olive or fitting.

4. Test for Leaks

• Once the fitting is secure, slowly turn on the water supply.
• Check for any leaks at the joint. If leaks are present, tighten the nut slightly more. PTFE tape can also be used on the threads for extra leak prevention if necessary.

Conclusion

With these steps, you should be able to successfully use your ORACSTAR PF21 Compression Olive 15mm to create secure plumbing connections. Always ensure fittings are tight and check for leaks after installation.
