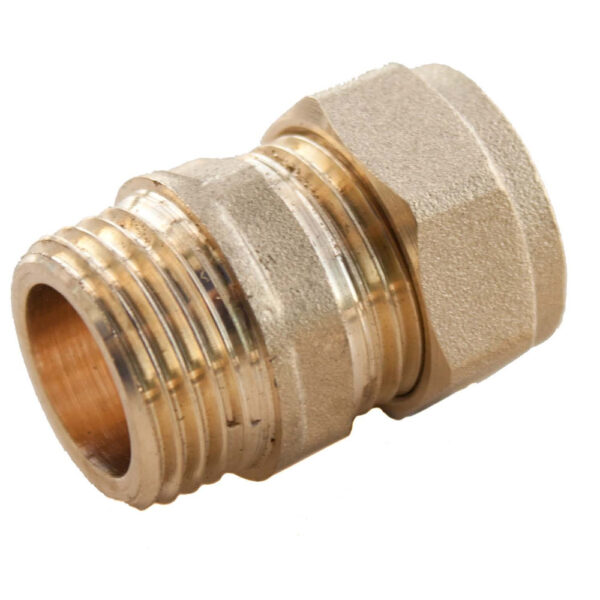

ORACSTAR PF11 15MM X 1/2 MALE COMPRESSION STRAIGHT COUPLER

Description

How to Use the ORACSTAR PF11 Compression Straight Coupler 15mm x 1/2 Male

Introduction

The ORACSTAR PF11 Compression Straight Coupler is used for connecting pipes. This guide will walk you through the steps of using this product effectively.

Materials Needed

• ORACSTAR PF11 Compression Straight Coupler
• 15mm pipe
• 1/2 inch male connector
• Adjustable wrench
• Pipe cutter
• PTFE tape (optional)

Steps to Install

1. Prepare the Pipes

1. Ensure the pipes you are connecting are clean and free from debris.
2. Use a pipe cutter to cut the pipes to the desired length if necessary.

2. Attach the Coupler to the 15mm Pipe

1. Slide the compression nut and then the compression ring (olive) onto the 15mm pipe.
2. Insert the pipe into the coupler body, ensuring it fits snugly.
3. Slide the compression ring and nut back towards the coupler body.
4. Hand-tighten the compression nut onto the coupler.

3. Secure the Connection

1. Use an adjustable wrench to tighten the compression nut. Ensure it is secure but avoid over-tightening.
2. Wrap PTFE tape around the threads of the 1/2 inch male connector if desired for a better seal.

4. Connect the 1/2 Inch Male Connector

1. Thread the 1/2 inch male connector into the coupler.
2. Use the adjustable wrench to tighten the connection securely.

Final Checks

• Ensure all connections are tight and secure.
• Turn on the water supply and check for any leaks.
• If leaks are detected, tighten the connections as needed.

Safety Tips

• Always follow the manufacturer’s instructions.
• Ensure the water supply is turned off before beginning installation.
• Wear appropriate safety gear if necessary.
