Connector Pipe Link Kit for Water Butt

Description

How to Use the Water Butt Connector Pipe Link Kit

Introduction

This guide will help you connect two water butts using the Water Butt Connector Pipe Link Kit. Follow the instructions carefully for optimal results.

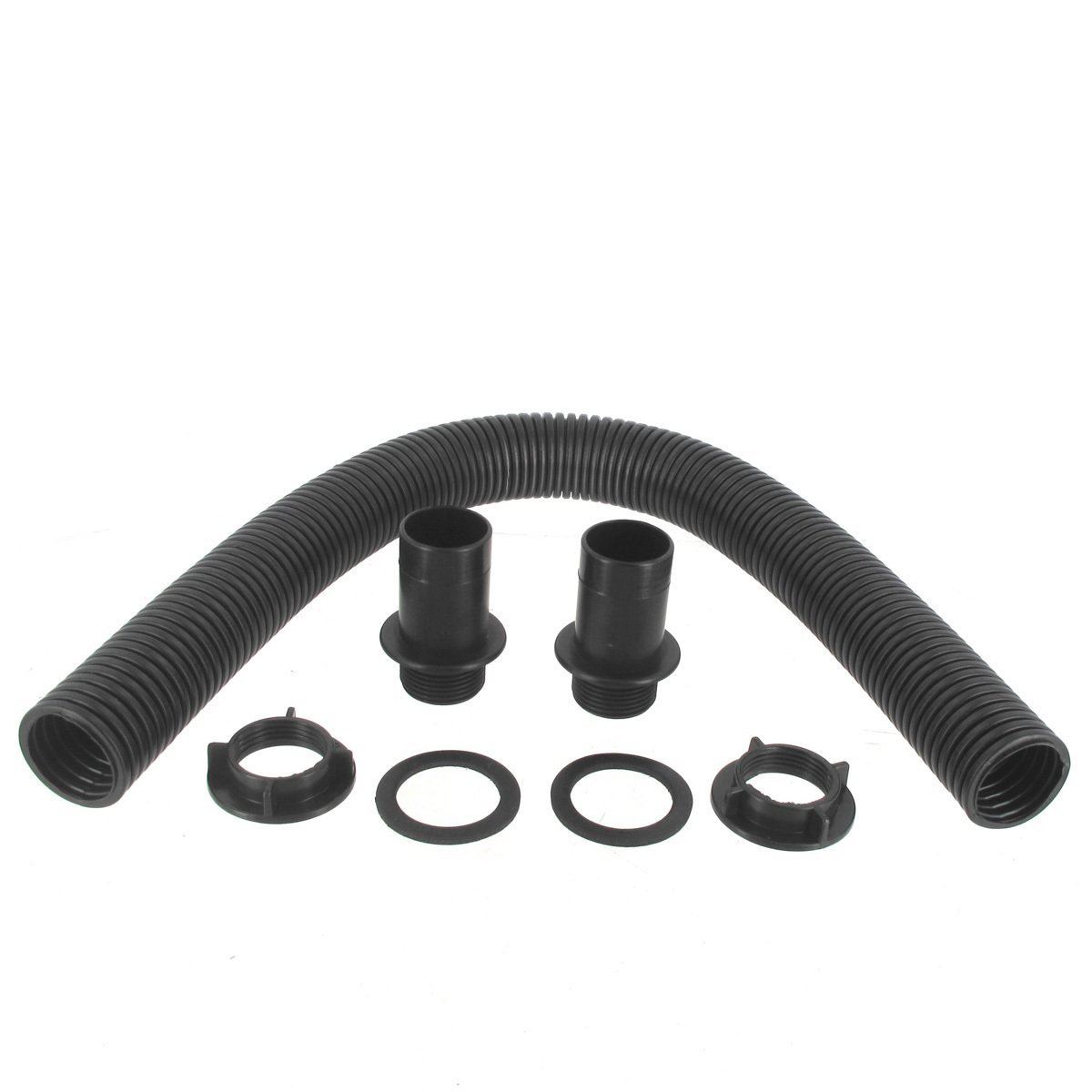

Contents of the Kit

• 1 x Pipe (50cm approx)
• 2 x Washers
• 2 x Nuts
• 2 x Connectors (Plastic)

Tools Required

• Drill with a suitable drill bit
• Measuring tape
• Marker pen
• Wrench or pliers

Instructions

1. Position the Water Butts

• Place the two water butts close to each other.
• Ensure both are on a stable and even surface for optimal water flow.

2. Mark Drilling Points

• Measure and mark the points where you will drill holes on each water butt. The holes should be at the same height to ensure proper water flow.
• Use a marker pen to clearly indicate the drilling points.

3. Drill the Holes

• Using the drill, carefully drill holes at the marked points on both water butts.
• Ensure the holes are slightly smaller than the connectors for a snug fit.

4. Attach the Connectors

• Insert a connector into each hole from the outside of the water butt.
• Place a washer on the inside end of each connector.
• Screw a nut onto the connector, securing the washer firmly in place.
• Tighten the nut using a wrench or pliers to ensure no water leakage.

5. Connect the Pipe

• Attach one end of the pipe to the connector on the first water butt.
• Attach the other end of the pipe to the connector on the second water butt.
• Ensure both ends are securely fastened to prevent any leaks.

6. Test the Connection

• Fill one of the water butts with water.
• Check for any leaks at the connection points and tighten if necessary.
• Confirm that water flows correctly between the two butts.

Maintenance

• Regularly check the connection points for any signs of wear or leaks.
• Replace washers and nuts as needed to maintain a secure connection.
