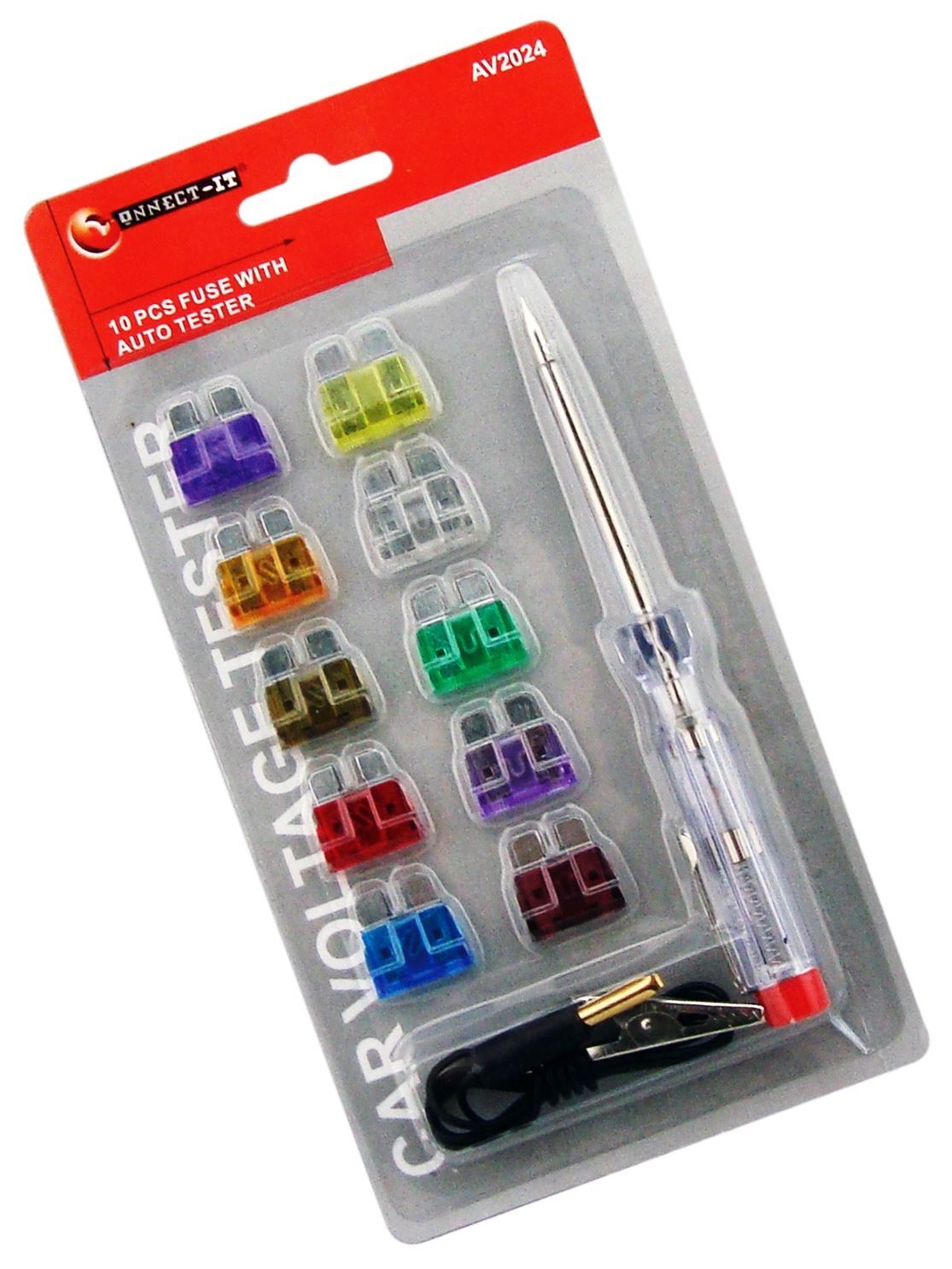

Automotive Fuse Tester Kit – Complete Set

Description

How to Use the ES Car Fuse Tester Set

The ES Car Fuse Tester Set is designed for testing car fuses to ensure they are functioning properly. Follow these steps to effectively use the tester set.

Step-by-Step Instructions

1. Gather Your Materials:
   • ES Car Fuse Tester Set
   • The vehicle’s manual (for fuse box diagram)
   • A pair of gloves (optional for safety)
   • Safety goggles (optional but recommended)
2. Locate the Fuse Box:
   • Refer to your vehicle’s manual to find the fuse box. Common locations include beneath the dashboard, under the hood, or in the trunk.
3. Turn Off the Car:
   • Ensure your vehicle is turned off and the keys are removed from the ignition to prevent any electrical hazards.
4. Identify the Fuse to Test:
   • Use the fuse box diagram to identify the specific fuse you need to test. Note its location and amperage rating.
5. Remove the Fuse:
   • Gently remove the fuse using your fingers or a fuse puller if available.
6. Test the Fuse:
   • Attach the ES Car Fuse Tester to the fuse. Ensure that the tester’s probes are making good contact with the fuse’s terminals.
   • Observe the indicator on the tester. A light or sound will indicate if the fuse is functional or blown.
7. Replace or Reinstall the Fuse:
   • If the fuse is blown, replace it with a new fuse of the same amperage rating.
   • If the fuse is functional, reinstall it back into its original position in the fuse box.

Safety Precautions

• Always ensure the vehicle is off before testing fuses to prevent electrical shock or damage.
• Handle fuses carefully to avoid breaking them or damaging the fuse box.
• Use the tester set only as intended and do not exceed the recommended amperage ratings.

Troubleshooting

• If the tester does not indicate a result, check the connections and ensure the tester is working properly.
• Consult the vehicle’s manual or a professional mechanic if you encounter difficulties.
