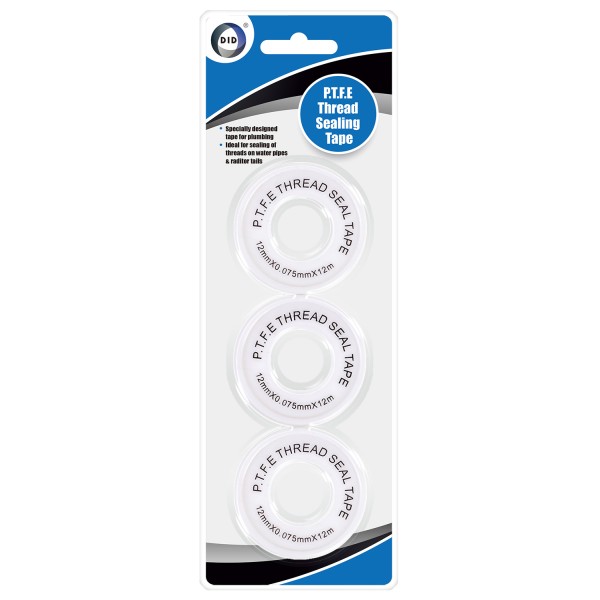

3-Pack of PTFE Thread Seal Tape

Description

How to Use PTFE Thread Sealing Tape

Introduction

PTFE thread sealing tape is a versatile product used to seal pipe threads to prevent leaks. It is commonly used in plumbing and gas fittings. This guide will walk you through the steps of using PTFE thread sealing tape effectively.

Materials Needed

• PTFE Thread Sealing Tape
• Pipes or fittings to be sealed
• Scissors or a cutting tool (optional)

Steps to Apply PTFE Thread Sealing Tape

1. Prepare the Threads: Ensure that the threads on the pipes or fittings are clean and dry. Remove any dirt, debris, or old tape to ensure a good seal.
2. Determine the Correct Direction: Hold the pipe or fitting in your hand and take note of the direction in which the threads are cut. You will wrap the tape in the opposite direction of the threading.
3. Start Wrapping: Begin wrapping the PTFE tape around the male threads of the pipe or fitting. Start a couple of threads back from the end to prevent the tape from entering the system.
4. Wrap the Tape: Hold the tape taut and continue wrapping in a clockwise direction (opposite to the direction of the threads). Overlap the tape by 50% with each turn to ensure full coverage.
5. Complete the Wrapping: Wrap the tape around the threads 3 to 5 times, depending on the thread size and the quality of the seal required. More wraps may be necessary for larger threads.
6. Tear the Tape: Once you have completed wrapping, tear the tape by pulling it taut or cutting it with scissors. Press the end of the tape into the threads to secure it.
7. Assemble the Joint: Once the tape is applied, screw the male and female parts together. Tighten by hand initially, and then use a wrench if necessary. Ensure not to overtighten, as this may damage the threads or the tape.

Tips for Best Results

• Use the correct size of PTFE tape for your pipes. Wider tape is typically used for larger diameter pipes.
• If the seal is not sufficient, disassemble the joint, remove the old tape, and reapply new tape.
• Store the tape in a cool, dry place to maintain its integrity.

Conclusion

PTFE thread sealing tape is an effective and easy-to-use solution for preventing leaks in threaded pipe connections. By following these steps, you can ensure a secure and leak-free joint.
